Bostan 2.0

Design · Engineering · Architecture
Kuzguncuk, Istanbul · 2022

Steelpro 2022 · First Prize

Render 01
Render 02
Render 03

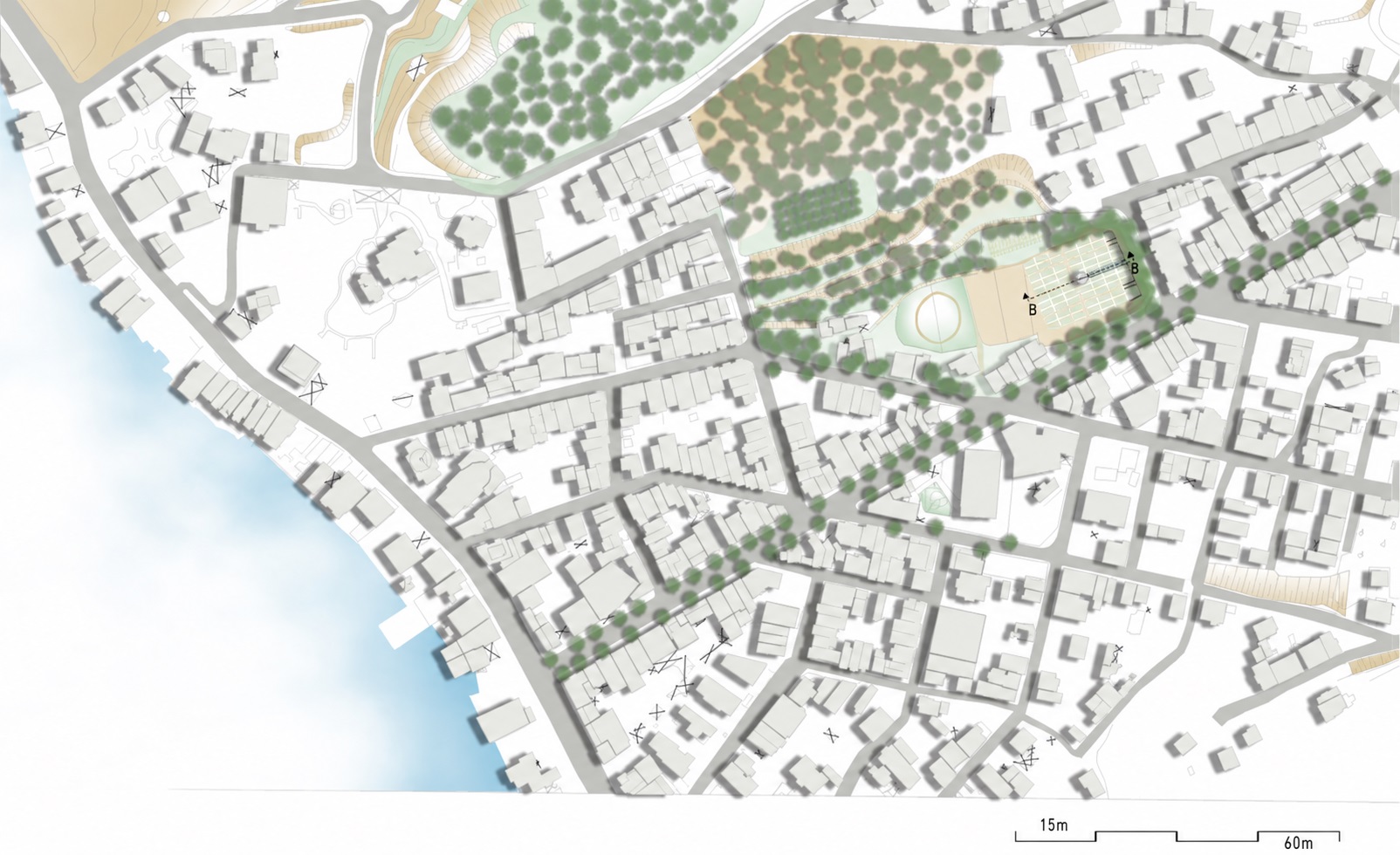

Site Plan
Site Plan

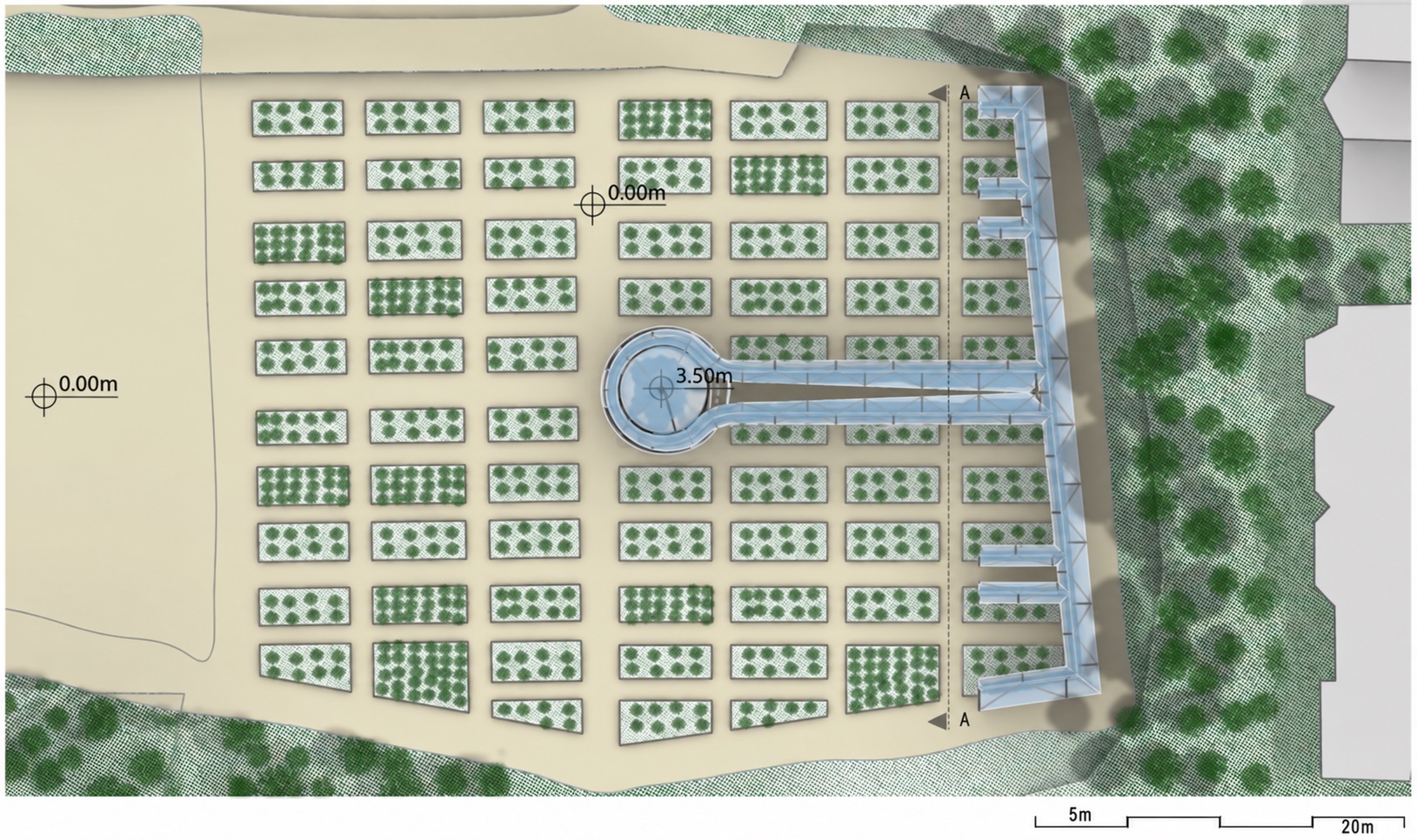

Project Plan
Project Plan

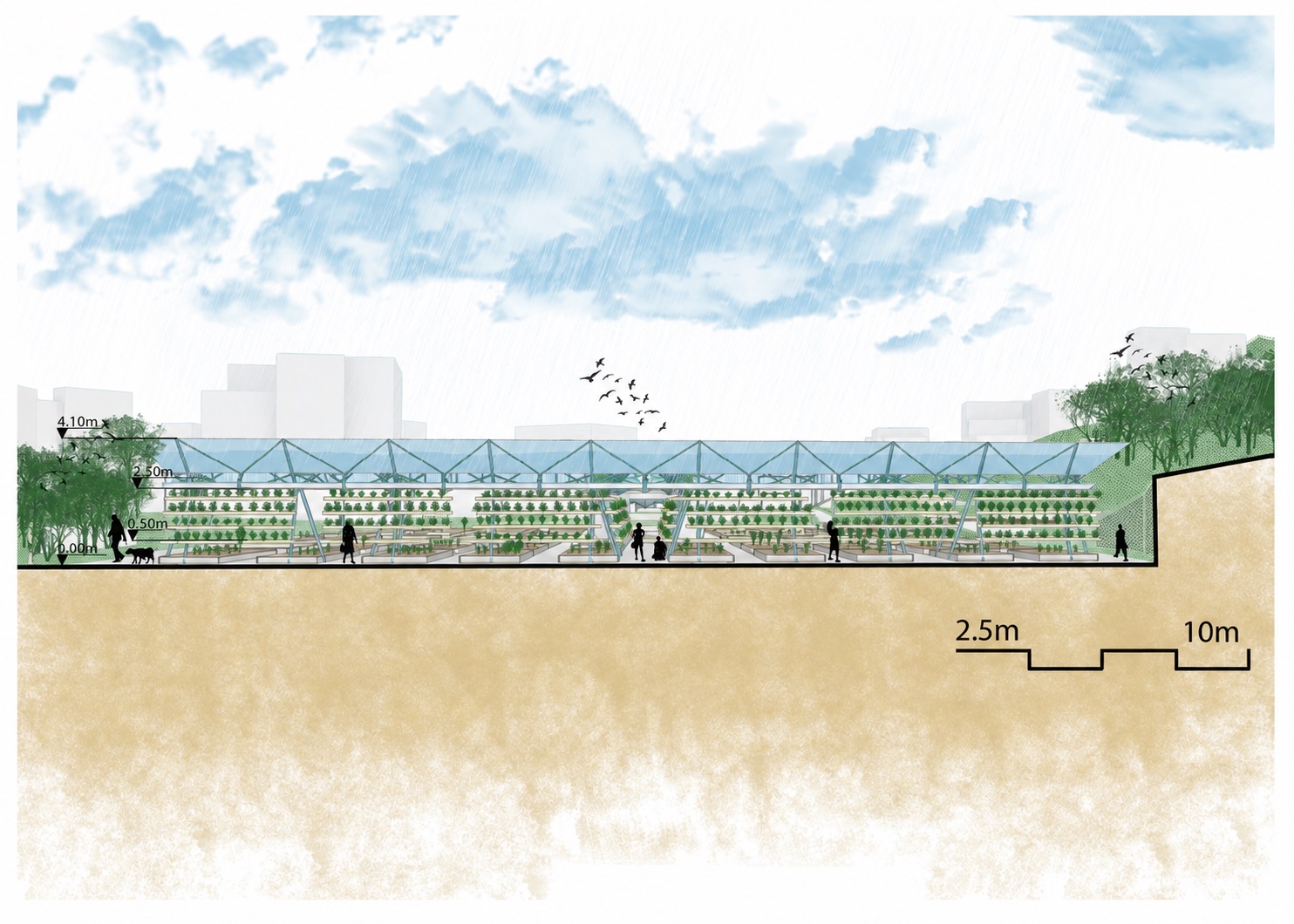

Section A–A
Section A–A

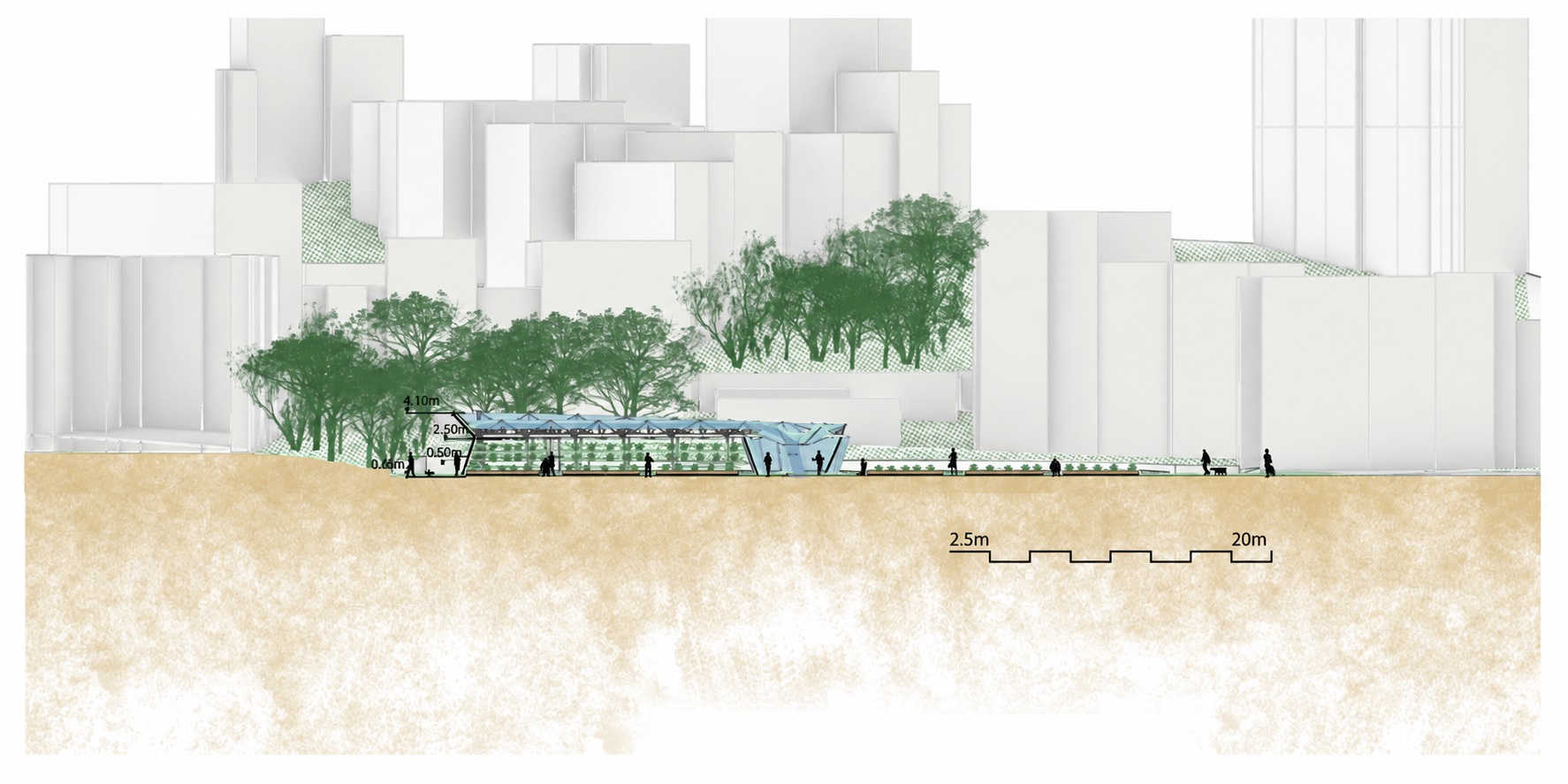

Section B–B
Section B–B
Axonometric View
Axonometric View

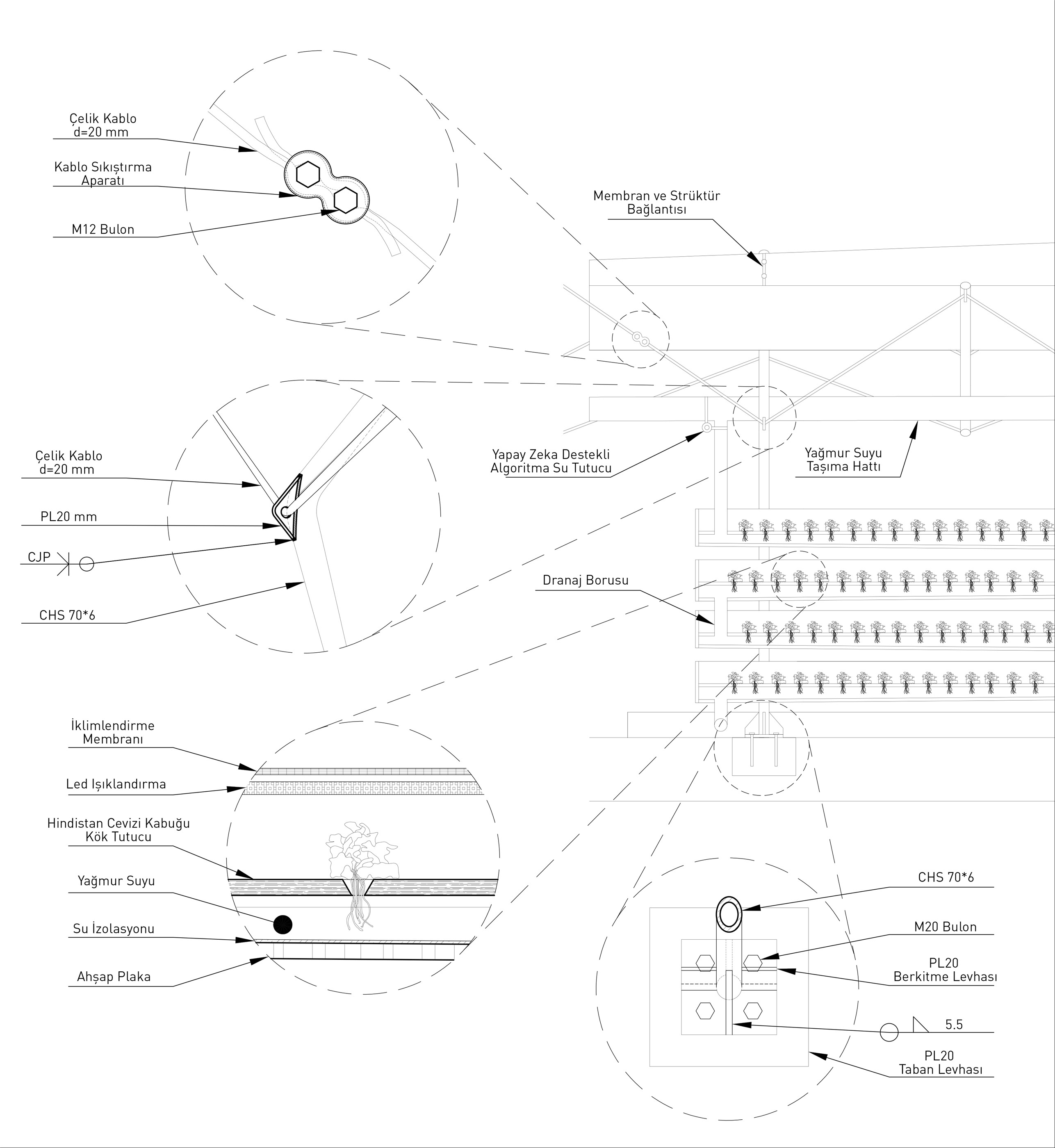

System Section
System Section

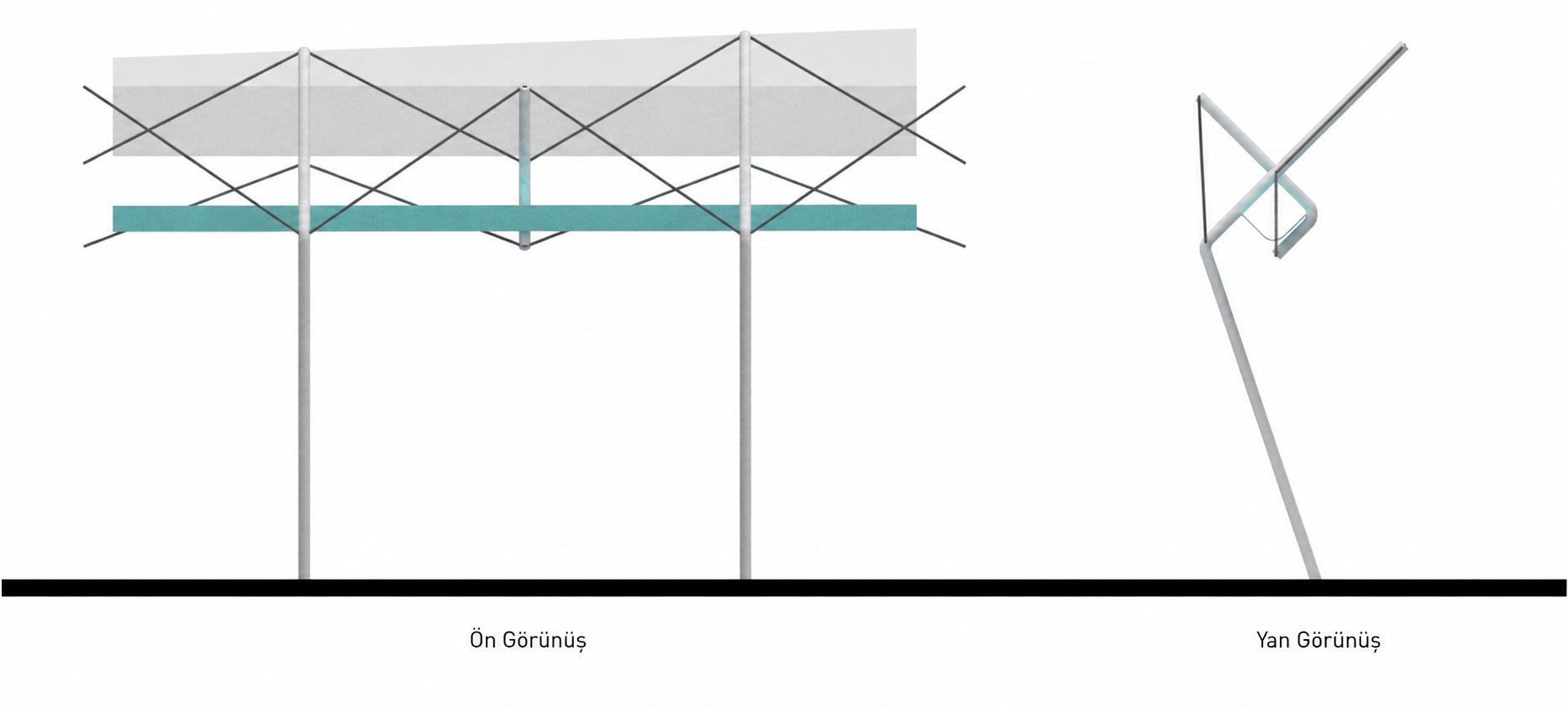

System Diagram
System Diagram

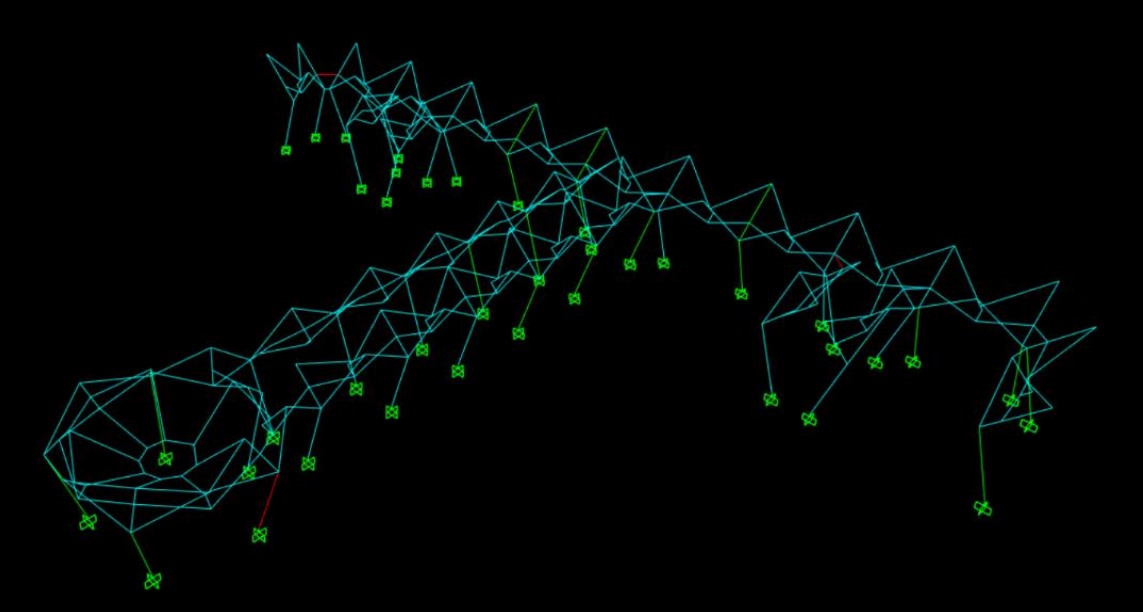

Structural Analysis
Structural Analysis

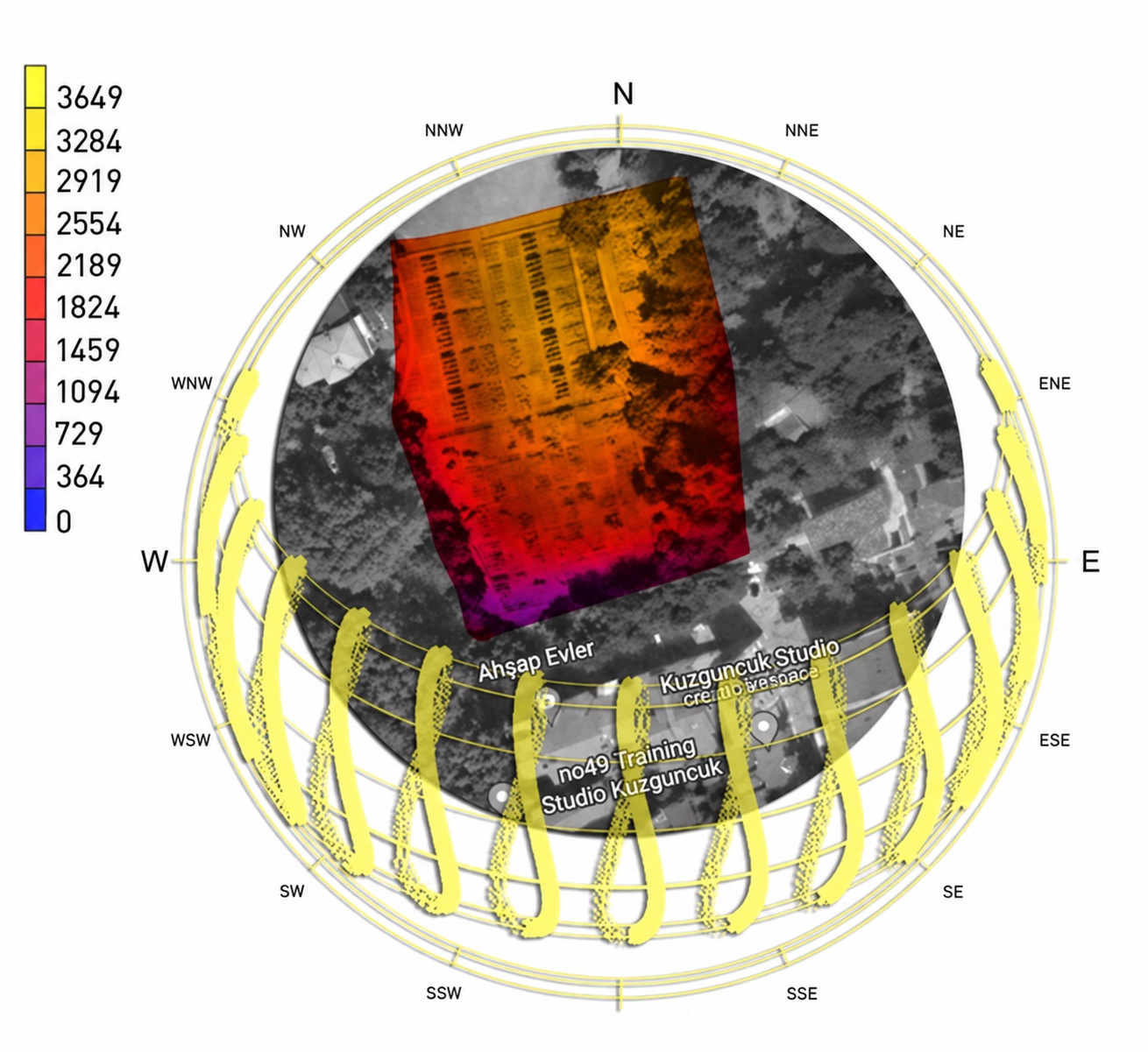

Total Sunlight Duration (Hours)
Total Sunlight Duration (Hours)

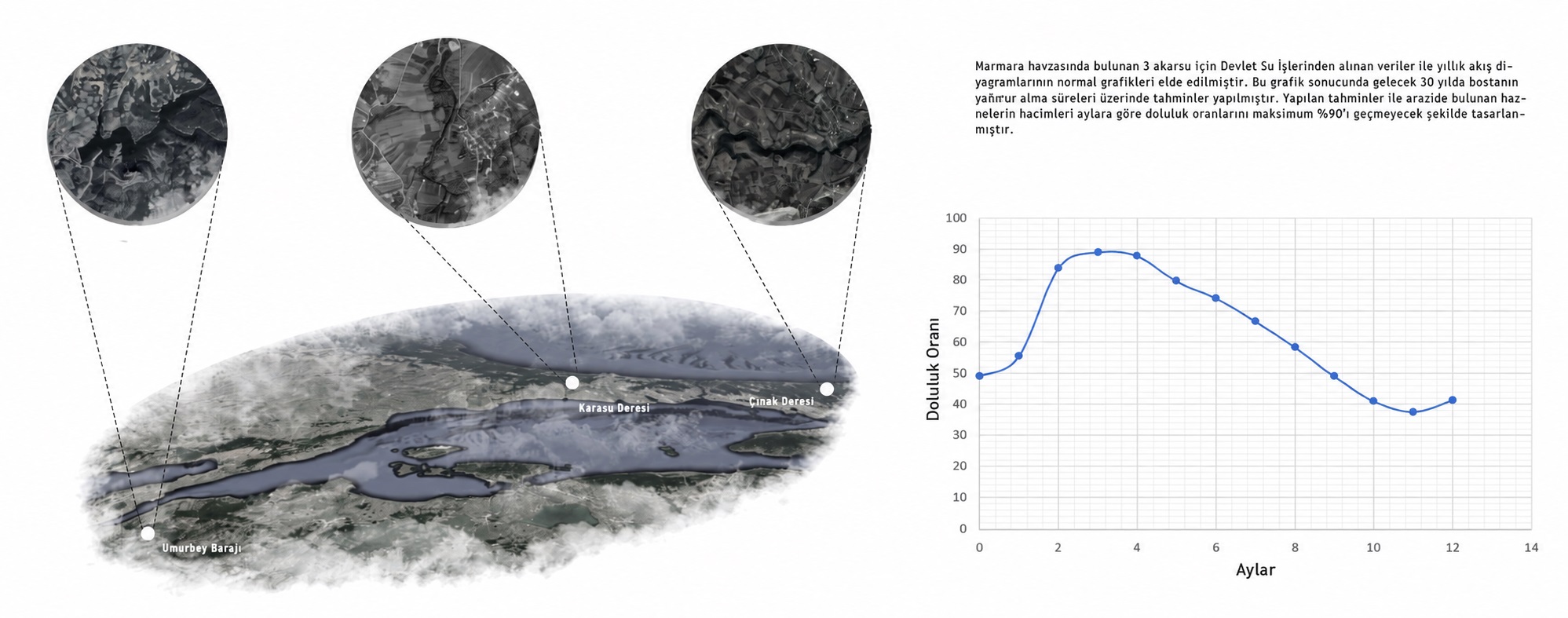

Reservoir Fill Level Analysis
Reservoir Fill Level Analysis

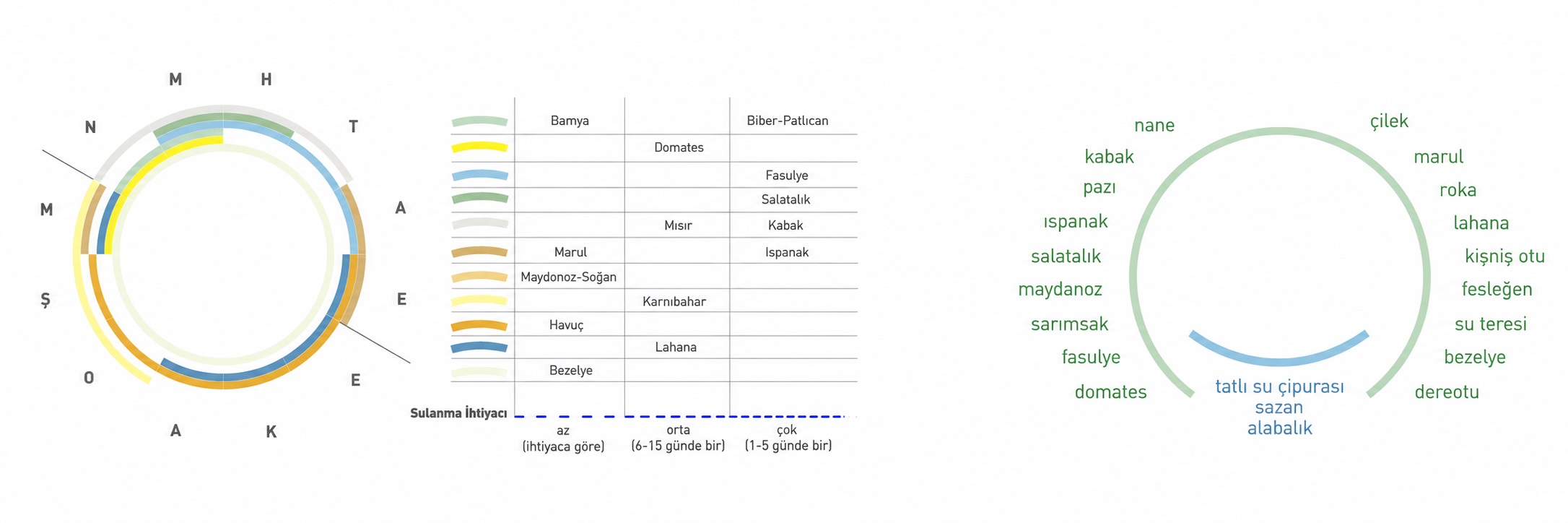

Planting And Harvest Calendar
Planting And Harvest Calendar

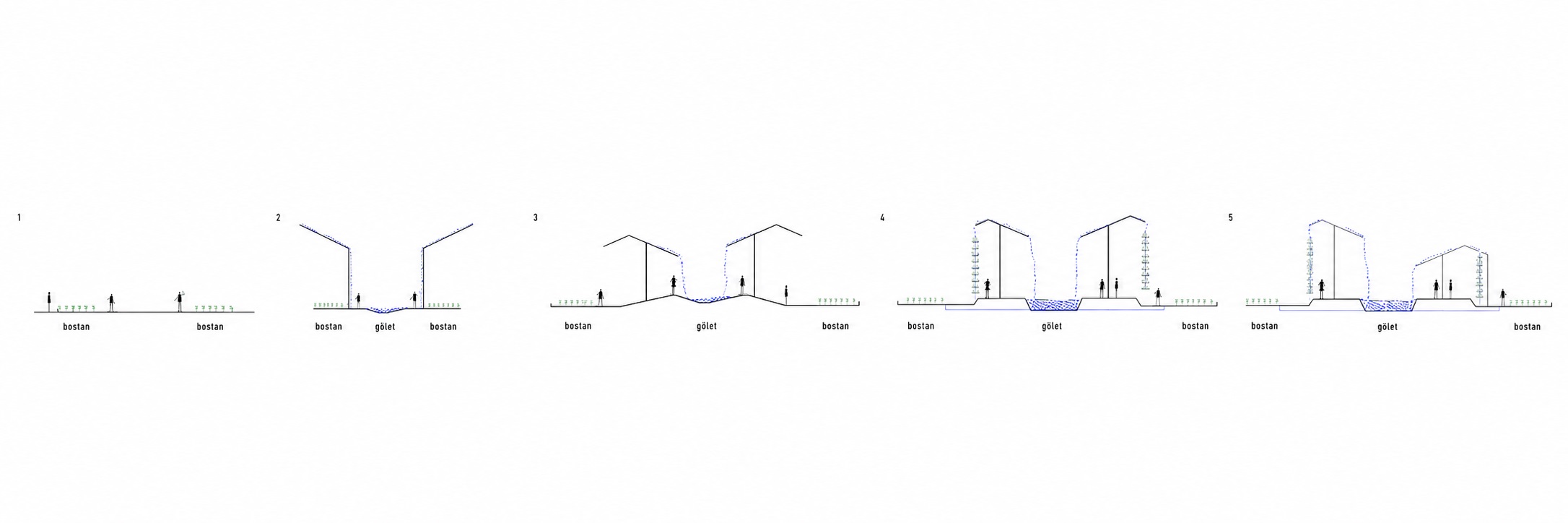

Roof And Programme Relationship
Roof And Programme Relationship

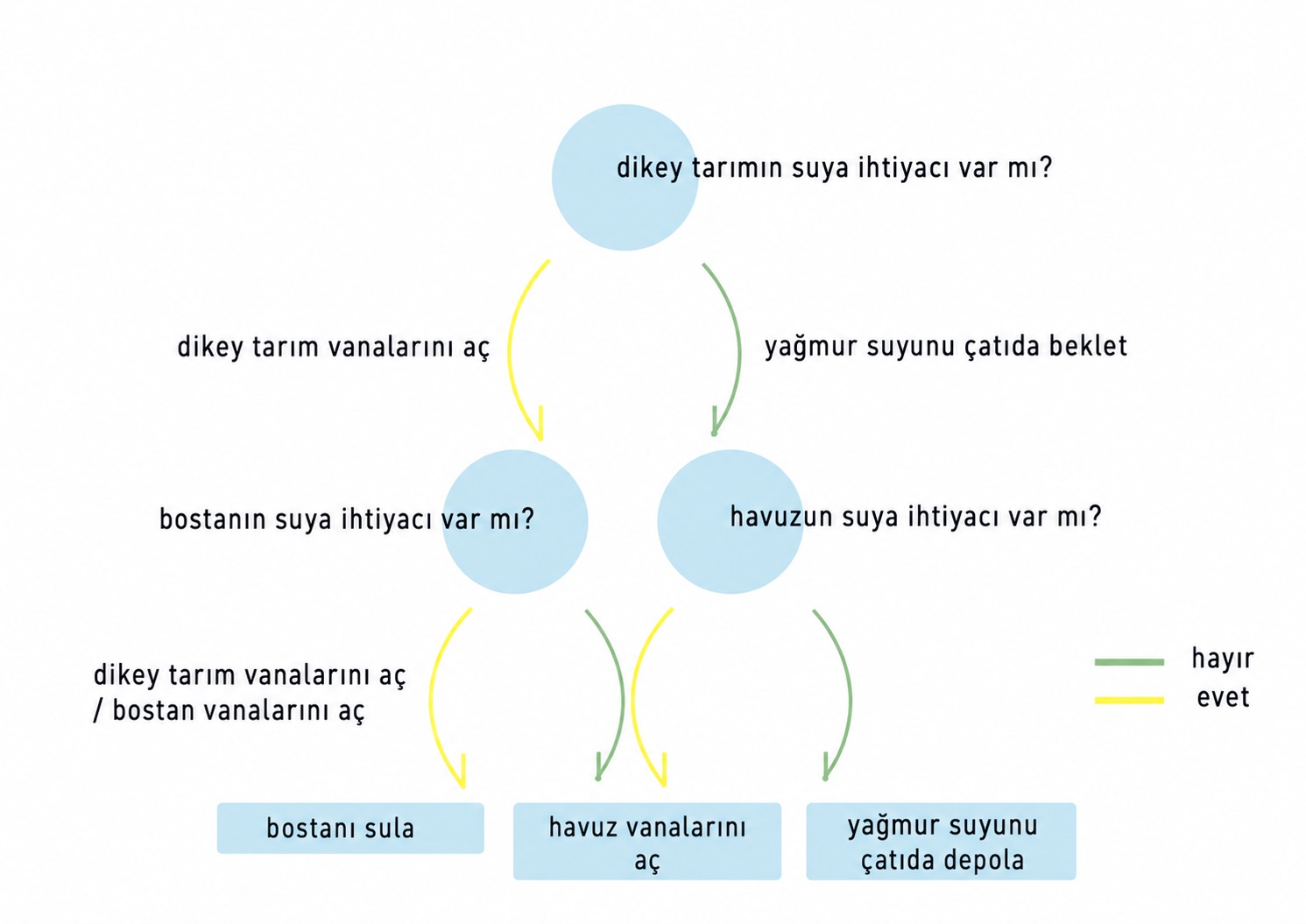

AI-assisted Irrigation Algorithm
AI-assisted Irrigation Algorithm
1 / 16

A new life around water.

Bostan 2.0 is a competition proposal for Kuzguncuk Bostanı that brings together rainwater harvesting, aquaponic cultivation and a steel structure. It seeks to strengthen the garden’s productive and ecological continuity in response to climate change, drought and urbanisation.

A central pond acts as a rainwater reservoir supplying the existing cultivation plots and vertical aquaponic units. Sunlight analysis informs the positioning of water tanks, while new paths allow visitors to experience the circulation of water and the cultivation process.

Rainwater collection surfaces and growing units are integrated with a steel structure informed by tensegrity principles. Steel cables and tubular columns keep circulation at ground level open. The architectural proposal was developed alongside load and structural analyses.

Competition and award

Steelpro 2022 · First Prize

Competition team

Dilara Atalay · Eren Kuru · Abdürrahim Üzüm
